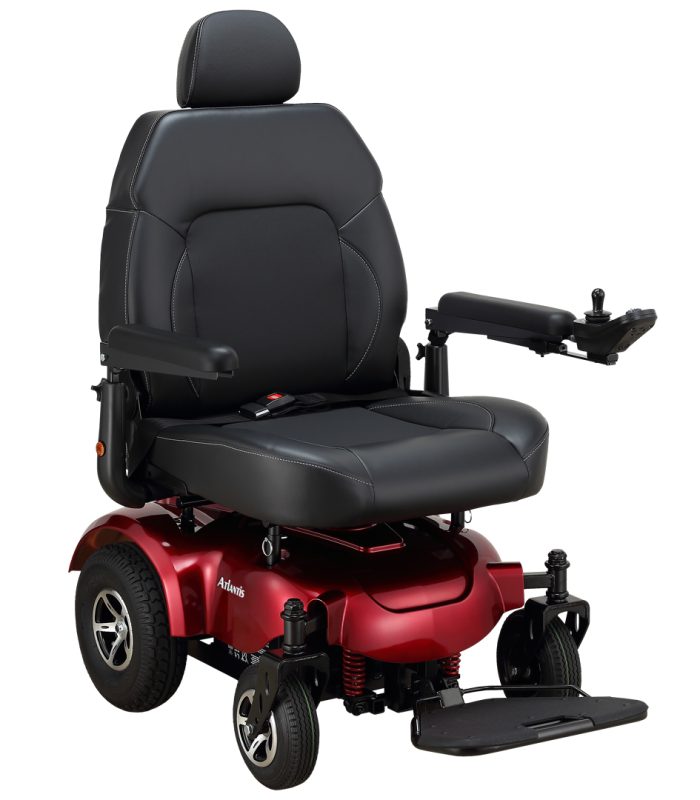

Atlantis Bariatric Power Wheelchair 600 lbs
1 1

Merits

Atlantis Bariatric Power Wheelchair 600 lbs

P71026ARMUB-24

Atlantis Bariatric Power Wheelchair 600 lbs

A bariatric rear-wheel-drive power wheelchair from Merits with a 600 lb capacity, a 24.5 in seat, and up to 32 miles per charge.
$4,910.00
$4,910.00
Out of stock
Color · Red
Seat Width · 24"

In stockShips in 1–5 business days Free shipping · Easy returns

(888) 229-3792Questions before you buy? Talk to a specialist about fit, delivery, and payment. View full details
600lb

Weight capacity

Per manufacturer spec

32mi

Range

Per charge

24.5in

Seat width

Captain seat

10°

Max grade

Per manufacturer spec

The design

Built for 600 pounds.

The Atlantis is Merits' super heavy-duty bariatric power chair, rated for up to 600 lb. Four seat posts support the frame, and the extra-wide 24.5 in captain seat and extra-high back are sized for larger riders.

High-power 300W in-line motors handle ramps up to 10°, and two 75Ah AGM batteries give up to 32 miles per charge at speeds up to 5 mph. 12 in pneumatic drive tires and 9 in pneumatic casters smooth the ride. Flip-up, height-adjustable, detachable armrests and elevating leg rests are available as options.

The details

Specs, documents, and what’s in the box.

Atlantis User Manual (PDF)

Weight capacity600 lb
Total weight304 lb (heaviest piece 167 lb)
DriveRear-wheel
SeatCaptain, 24.5 in W × 20 in D
Backrest height21.25 in
Seat-to-floor height22 to 23 in
Max speed5 mph
RangeUp to 32 mi
Turning radius31.5 in
Ground clearance2.75 in
Max grade10°
Motors24V 300W
BatteriesTwo 75Ah AGM
Wheels9 in front, 12 in drive, pneumatic
Dimensions33 × 32 × 41.5 in
Warranty5-yr base frame; 13-mo controller, motors, electronics

Shipping & delivery

Ships in 1–5 business days

  • Free shipping on orders over $50
  • Curbside delivery by freight carrier. The carrier brings it to your curb or driveway; moving it inside is up to you.
  • The carrier may contact you to schedule a delivery window.
  • Signature required at delivery.
  • Some assembly required.
  • Inspect before signing and note any damage on the delivery receipt. Report damage within 48 hours.
View return policy

Insurance & FSA / HSA

See if your plan covers it — in 60 seconds.

We bill Medicare and most major insurance plans. With a doctor’s order your out-of-pocket may be $0. Or pay directly with your FSA / HSA card at checkout.

Check coverage
Weight capacity 600 lb
Total weight 304 lb (heaviest piece 167 lb)
Drive Rear-wheel
Seat Captain, 24.5 in W × 20 in D
Backrest height 21.25 in
Seat-to-floor height 22 to 23 in
Max speed 5 mph
Range Up to 32 mi
Turning radius 31.5 in
Ground clearance 2.75 in
Max grade 10°
Motors 24V 300W
Batteries Two 75Ah AGM
Wheels 9 in front, 12 in drive, pneumatic
Dimensions 33 × 32 × 41.5 in
Warranty 5-yr base frame; 13-mo controller, motors, electronics
