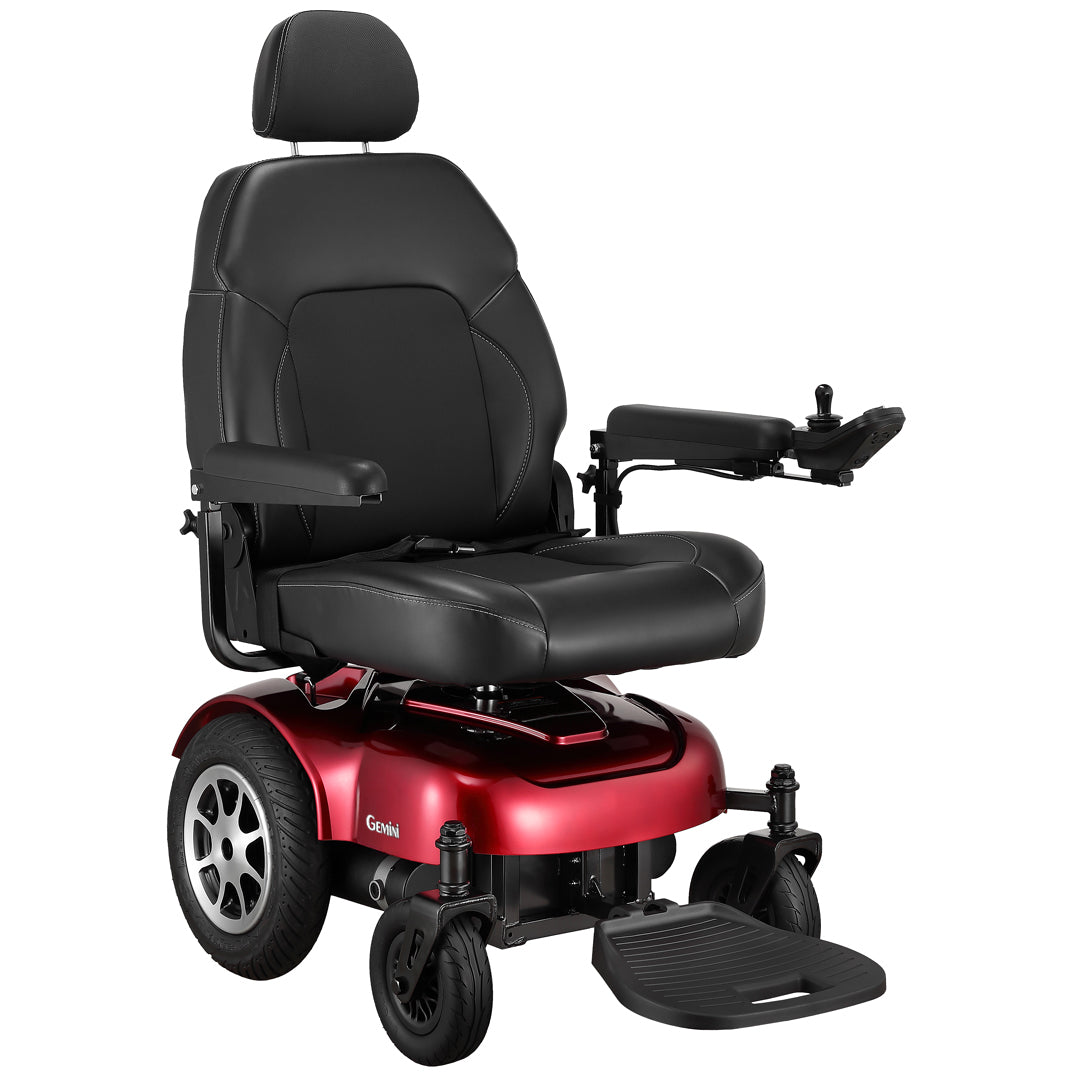

Gemini Heavy Duty Power Wheelchair 450 lbs
1 1

Merits

Gemini Heavy Duty Power Wheelchair 450 lbs

P3017-ARMU

Gemini Heavy Duty Power Wheelchair 450 lbs

A heavy-duty rear-wheel-drive power wheelchair from Merits with a 450 lb capacity, 14 in rubber drive tires, and up to 20 miles per charge.
$3,207.00
$3,207.00
Out of stock
Color · Red

In stockShips in 1–5 business days Free shipping · Easy returns

(888) 229-3792Questions before you buy? Talk to a specialist about fit, delivery, and payment. View full details
450lb

Weight capacity

Per manufacturer spec

20mi

Range

Per charge

14in

Drive tires

Rubber, foam-filled

10°

Max grade

Per manufacturer spec

The design

Heavy-duty, rear-wheel drive.

The Gemini is a heavy-duty, true rear-wheel-drive power chair rated for up to 450 lb. Large 14 in rubber drive tires give it traction on sidewalks, ramps, and uneven ground, and it handles grades up to 10°.

The ergonomic seat semi-reclines up to 135° and comes as a captain or pan seat with 20 and 22 in width options and 18 to 22 in depth. Two 50Ah batteries give up to 20 miles per charge at speeds up to 5 mph. An XL footplate and elevating leg rests are available as options.

The details

Specs, documents, and what’s in the box.

Gemini User Manual (PDF)

Weight capacity450 lb
Total weight242 lb (heaviest piece 126 lb)
SeatCaptain or pan, 20 or 22 in W
Seat-to-floor height23 in
DriveRear-wheel
Seat depth18 to 22 in
ReclineUp to 135°
Max speed5 mph
RangeUp to 20 mi
Turning radius35 in
Ground clearance2.5 in
Max grade10°
BatteriesTwo 50Ah 22NF
Wheels8 in front, 14 in drive, foam-filled
Dimensions29.5 × 28 × 42.75 in
Warranty5-yr base frame; 13-mo controller, motors, electronics

Shipping & delivery

Ships in 1–5 business days

  • Free shipping on orders over $50
  • Curbside delivery by freight carrier. The carrier brings it to your curb or driveway; moving it inside is up to you.
  • The carrier may contact you to schedule a delivery window.
  • Signature required at delivery.
  • Some assembly required.
  • Inspect before signing and note any damage on the delivery receipt. Report damage within 48 hours.
View return policy

Insurance & FSA / HSA

See if your plan covers it — in 60 seconds.

We bill Medicare and most major insurance plans. With a doctor’s order your out-of-pocket may be $0. Or pay directly with your FSA / HSA card at checkout.

Check coverage
Weight capacity 450 lb
Total weight 242 lb (heaviest piece 126 lb)
Seat Captain or pan, 20 or 22 in W
Seat-to-floor height 23 in
Drive Rear-wheel
Seat depth 18 to 22 in
Recline Up to 135°
Max speed 5 mph
Range Up to 20 mi
Turning radius 35 in
Ground clearance 2.5 in
Max grade 10°
Batteries Two 50Ah 22NF
Wheels 8 in front, 14 in drive, foam-filled
Dimensions 29.5 × 28 × 42.75 in
Warranty 5-yr base frame; 13-mo controller, motors, electronics
