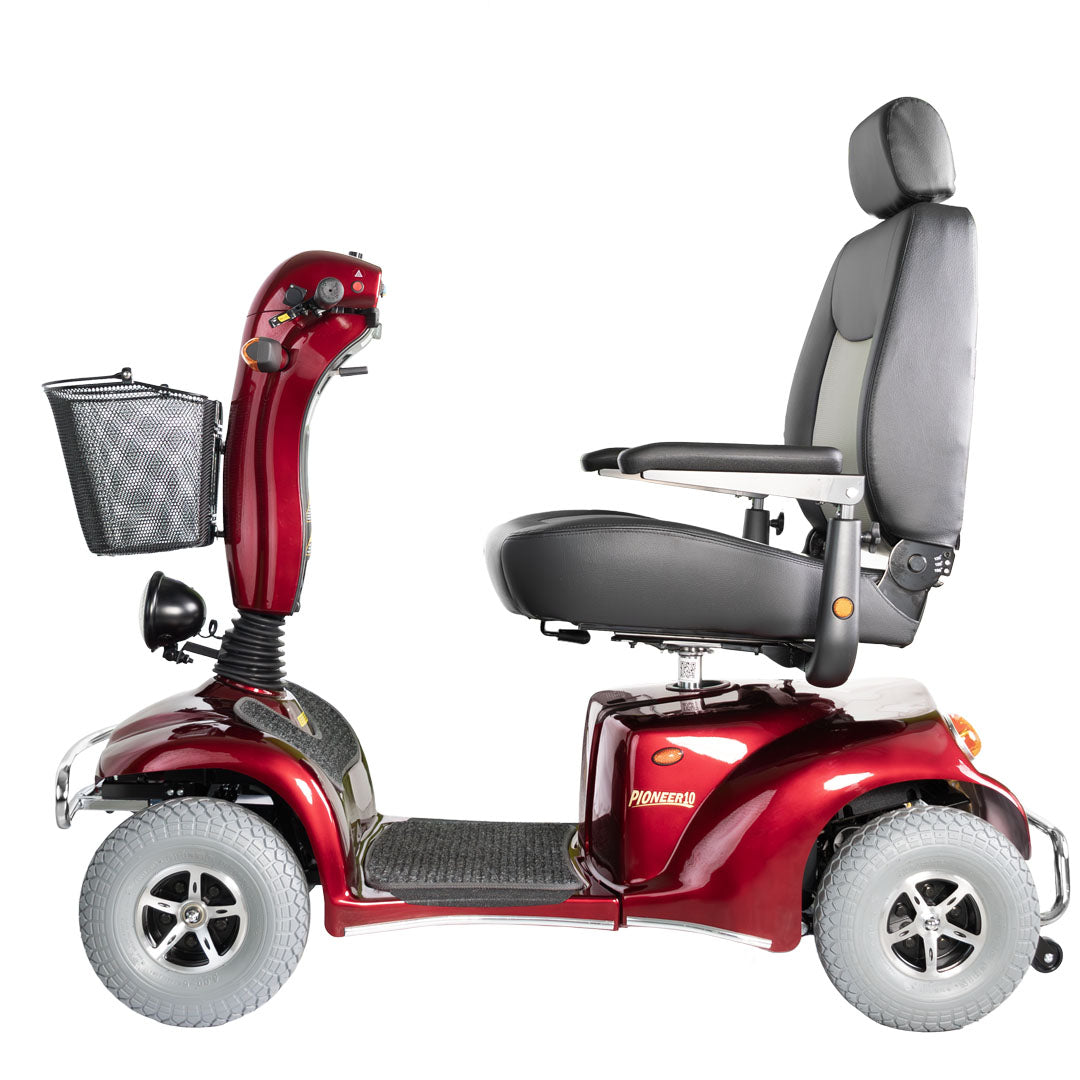

Pioneer 10 Heavy Duty Four-Wheel Scooter 500 lbs Red

S341-1ARMUB

Pioneer 10 Heavy Duty Four-Wheel Scooter 500 lbs Red

A heavy-duty four-wheel mobility scooter from Merits with a 500 lb capacity, suspension, and up to 32 miles per charge.
$3,766.00
$3,766.00
Out of stock

In stockShips in 1–5 business days Free shipping · Easy returns

(888) 229-3792Questions before you buy? Talk to a specialist about fit, delivery, and payment. View full details
500lb

Weight capacity

Per manufacturer spec

32mi

Range

Per charge

6mph

Top speed

Half-speed switch included

12.5in

Tires

Flat-free, all four

The design

Heavy-duty, four-wheel stability.

The Pioneer 10 is a heavy-duty four-wheel scooter rated for up to 500 lb. Four 12.5 in flat-free tires and suspension give it a stable, smooth ride, and 4 in of ground clearance helps it handle outdoor terrain.

A hydraulic, adjustable tiller and a sliding 22 in captain seat let you set up a comfortable driving position. It reaches 6 mph with up to 32 miles per charge, a half-speed inhibit switch limits speed when you want more control, and headlight, tail lights, turn signals, and hazard lights come standard.

The details

Specs, documents, and what’s in the box.

Pioneer 10 User Manual (PDF)

Weight capacity500 lb
Max speed6 mph
RangeUp to 32 mi
SuspensionYes
SeatSliding captain, 22 in W × 20 in D
Seat-to-ground height25 to 28 in
Ground clearance4 in
Max grade12°
Motor24V 400W
Battery75Ah AGM
Total weight269 lb (heaviest piece 121 lb)
WheelsFour, 12.5 in flat-free
Turning radius62 in
Dimensions59 × 27 × 47 in
Warranty5-yr base frame; 13-mo controller, motors, electronics
