Vision Sport Power Wheelchair 300 lbs
1 1

Merits

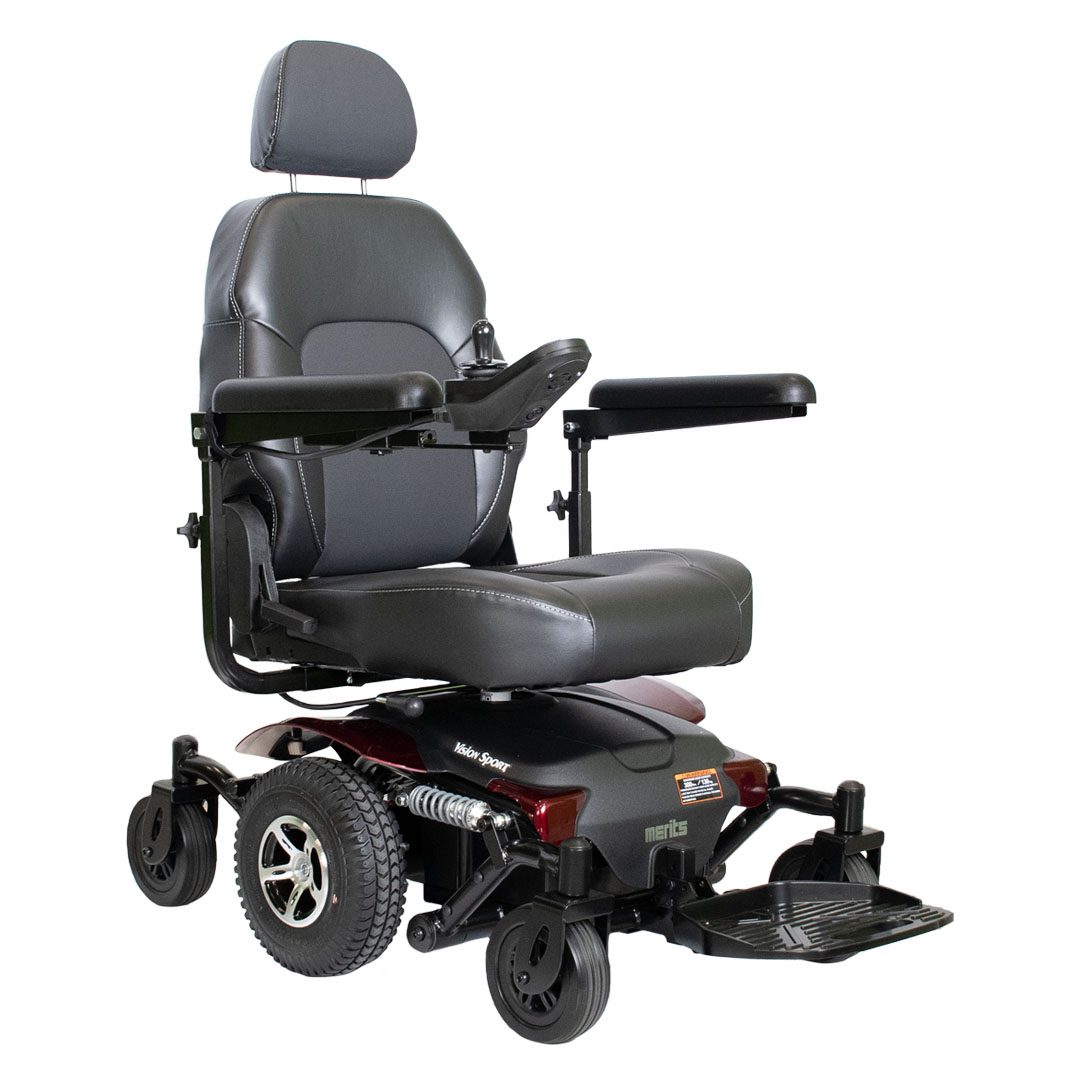

Vision Sport Power Wheelchair 300 lbs

P326E0M-ARMUB

Vision Sport Power Wheelchair 300 lbs

A true mid-wheel-drive power wheelchair from Merits with independent suspension, a 20 in turning radius, and a semi-reclining seat.
$2,867.00
$2,867.00
Out of stock
Color · Red

In stockShips in 1–5 business days Free shipping · Easy returns

(888) 229-3792Questions before you buy? Talk to a specialist about fit, delivery, and payment. View full details
20in

Turning radius

True mid-wheel drive

300lb

Weight capacity

Per manufacturer spec

18mi

Range

Per charge

5mph

Top speed

Per manufacturer spec

The design

Turns in its own footprint.

The Vision Sport is a true mid-wheel-drive power chair. With the drive wheels centered under the rider, it turns in a 20 in radius, close to its own footprint. Independent suspension smooths the ride, and Merits rates the footplate to take up to 250 lb without tipping.

The semi-reclining seat goes back up to 135° and comes as a captain or pan seat in 16 to 20 in widths, with seat depth adjustable from 16 to 20 in. 10 in solid drive tires mean no flats, a Dynamic LiNX 40A controller supports Bluetooth programming, and two 33Ah AGM batteries give up to 18 miles per charge at speeds up to 5 mph.

The details

Specs, documents, and what’s in the box.

Vision Sport User Manual (PDF)

Weight capacity300 lb
DriveMid-wheel
Seat depth16 to 20 in, adjustable
Max speed5 mph
RangeUp to 18 mi
Turning radius20 in
Ground clearance2 in
Max grade6°
Wheels6 in front and rear, 10 in drive, solid
Dimensions34 × 24 × 48.5 in
Total weight184 lb (heaviest piece 90 lb)
SeatCaptain or pan, 16 to 20 in W
Seat-to-floor height17 to 21 in
ReclineUp to 135°
ControllerDynamic LiNX 40A
BatteriesTwo 33Ah AGM
Warranty5-yr base frame; 13-mo controller, motors, electronics
