Vision Super Heavy Duty Power Wheelchair with Power Seat Lift 400 lbs

P32740ARMUB

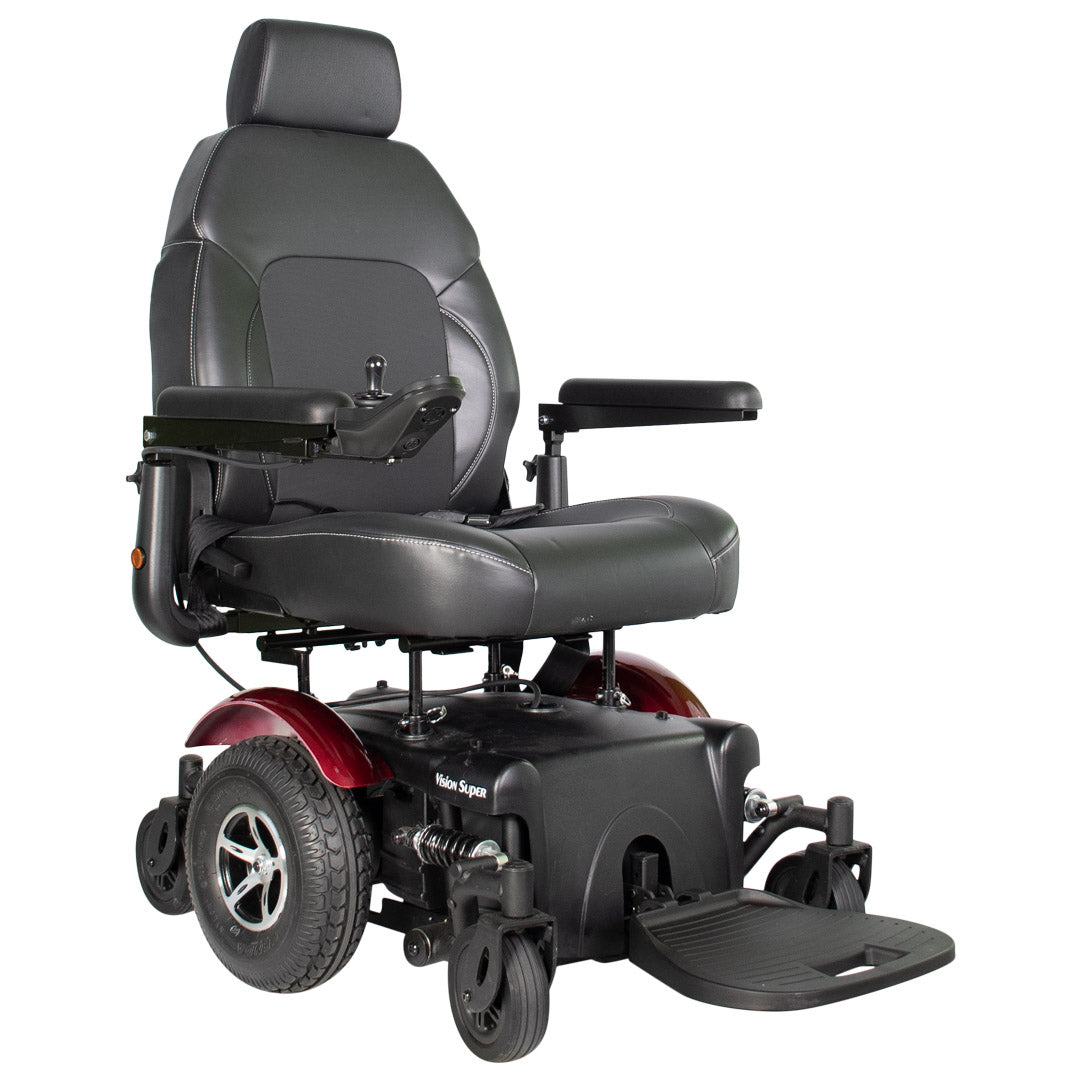

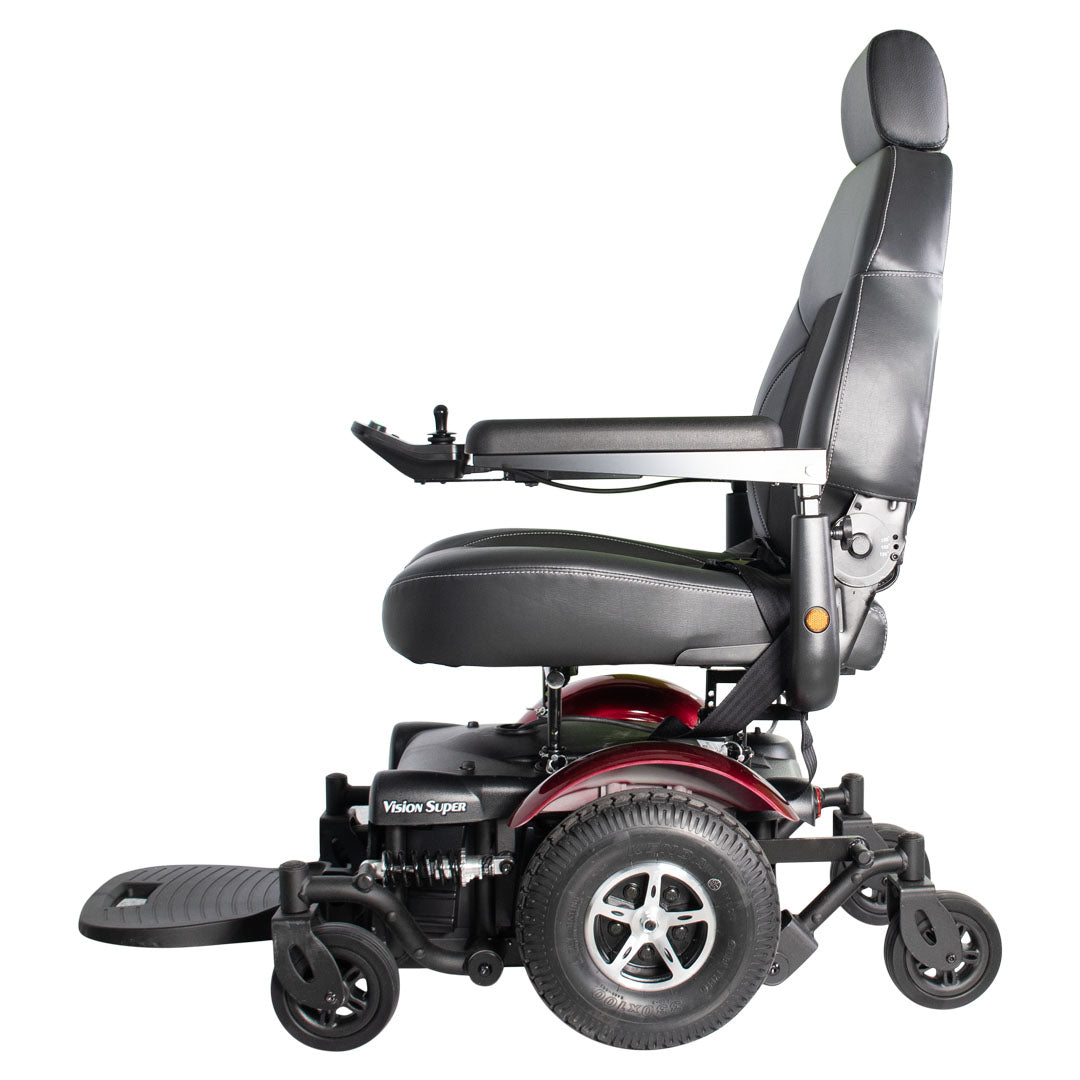

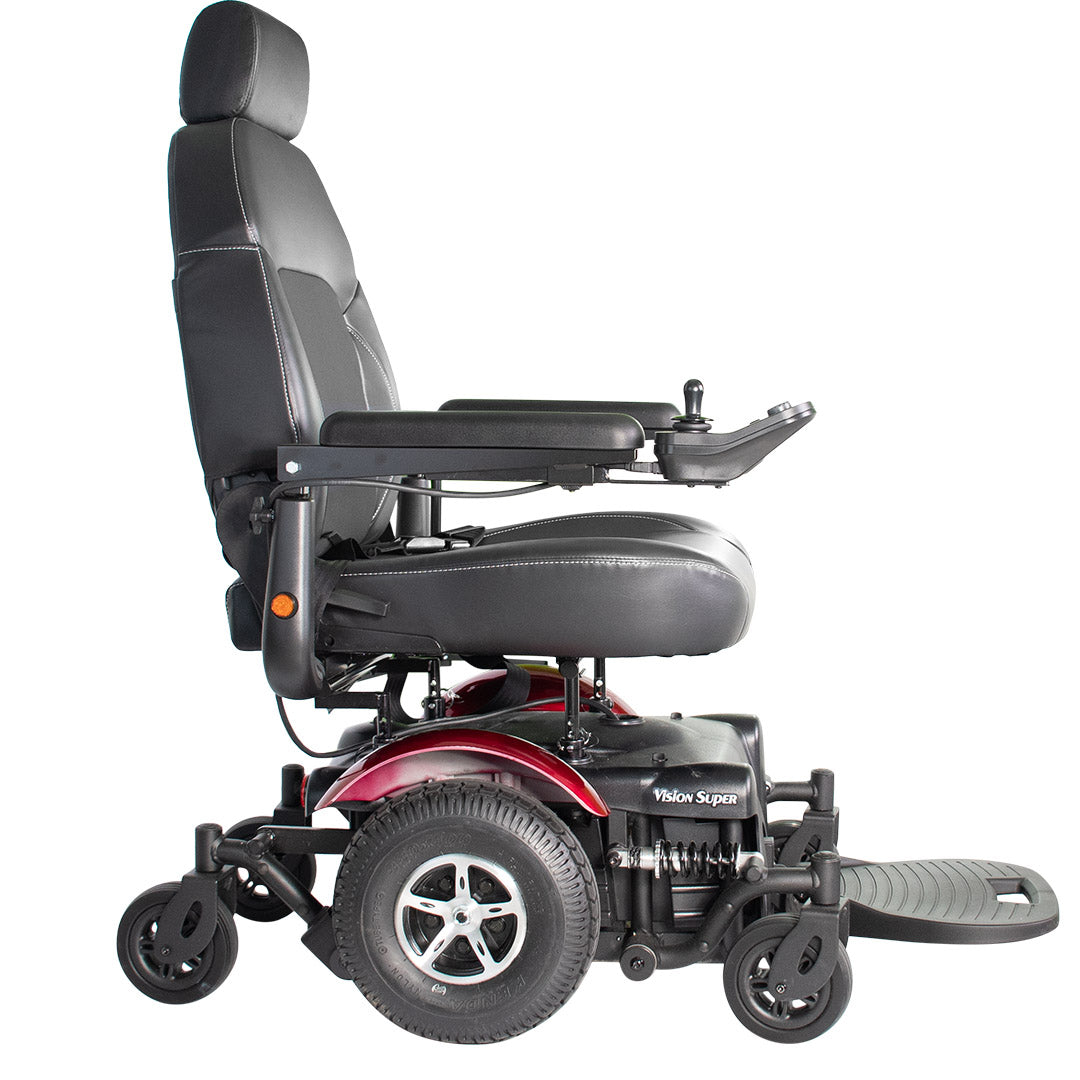

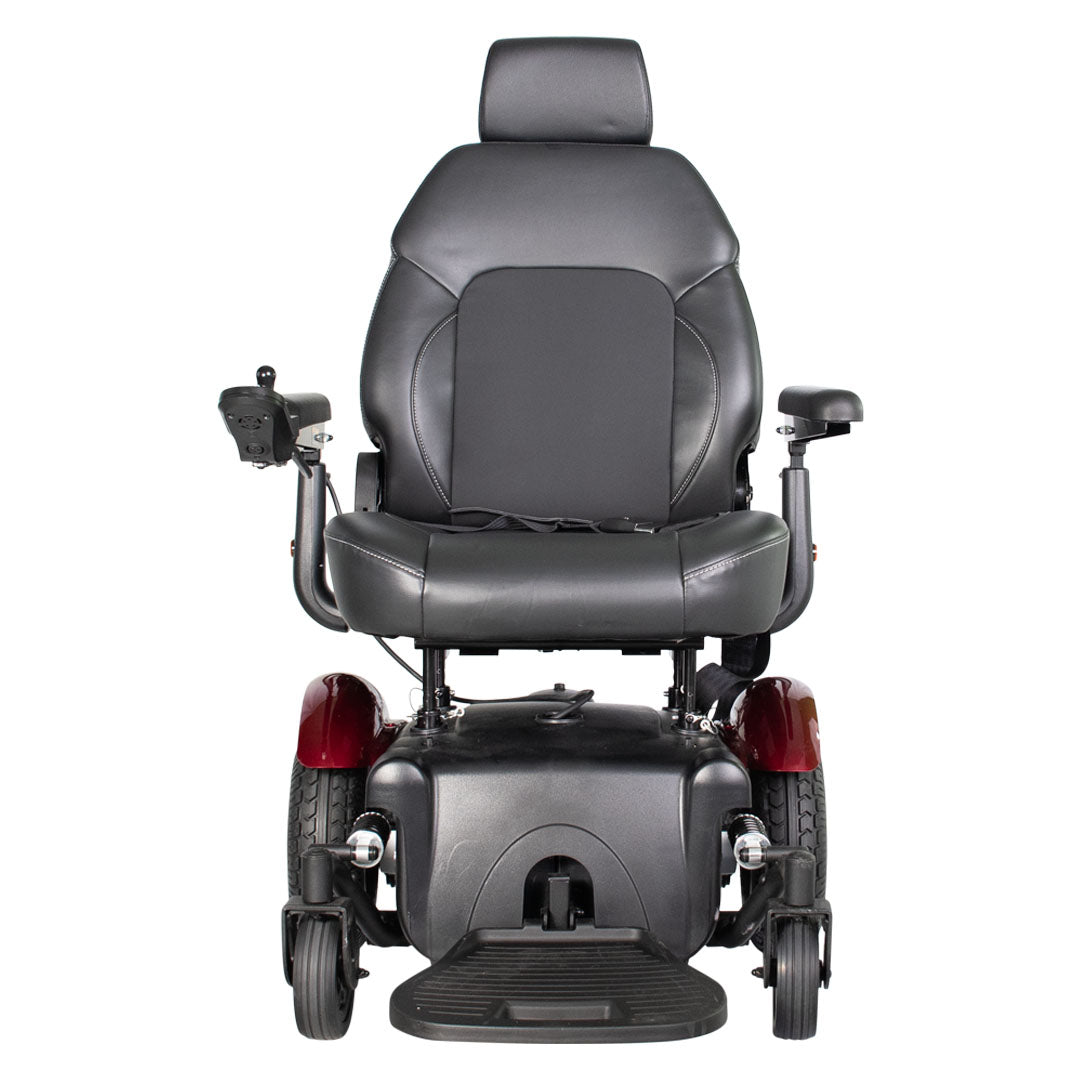

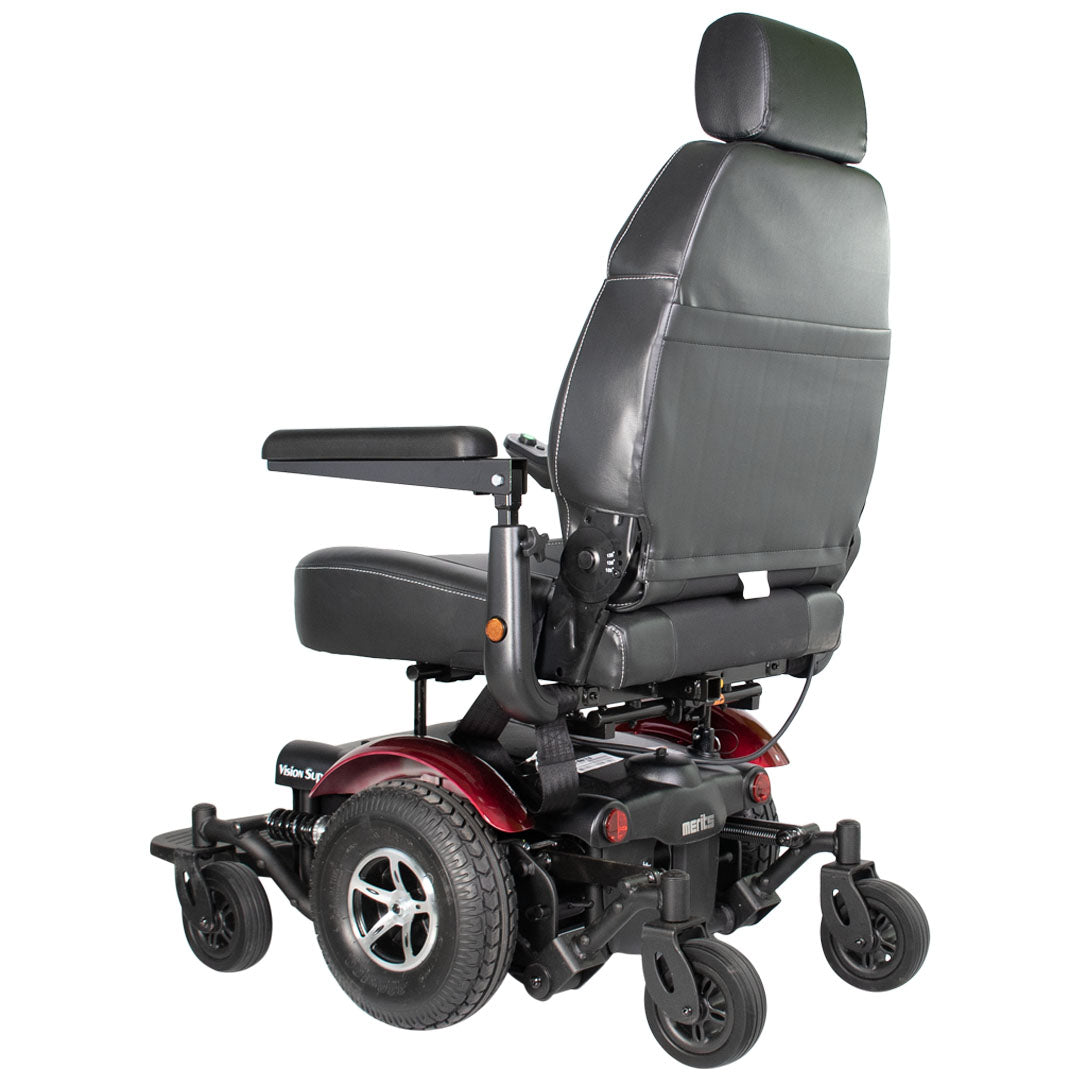

Vision Super Heavy Duty Power Wheelchair with Power Seat Lift 400 lbs

The Vision Super heavy-duty mid-wheel-drive power wheelchair from Merits with a 10 in power scissor seat lift and a 400 lb capacity.
$5,135.00
$5,135.00
Out of stock
Color · Red

In stockShips in 1–5 business days Free shipping · Easy returns

(888) 229-3792Questions before you buy? Talk to a specialist about fit, delivery, and payment. View full details
10in

Seat lift

Power scissor lift

400lb

Weight capacity

With lift

20mi

Range

Per charge

21in

Turning radius

True mid-wheel drive

The design

Ten inches of lift, heavy-duty frame.

This Vision Super adds a 10 in power scissor seat lift to Merits' super heavy-duty mid-wheel-drive base. The lift raises the seat-to-floor height from 24 to 34 in, and the chair is rated for up to 400 lb with the lift installed.

Dual 300W motors drive it up to 5 mph with up to 20 miles per charge, and it turns in a 21 in radius. The semi-reclining seat goes back up to 135°, comes as a captain or pan seat in 20 to 24 in widths, and adjusts in depth from 18 to 22 in. 12 in flat-free drive tires mean no flats.

The details

Specs, documents, and what’s in the box.

Vision Super User Manual (PDF)

Weight capacity400 lb
SeatCaptain or pan, 20 to 24 in W
Power seat elevation10 in
Seat-to-floor height24 to 34 in
ReclineUp to 135°
DriveMid-wheel
Seat depth18 to 22 in, adjustable
Max speed5 mph
RangeUp to 20 mi
Turning radius21 in
Ground clearance2.2 in
Max grade8°
MotorsTwo 24V 300W
Wheels6 in solid front and rear, 12 in flat-free drive
Dimensions35.4 × 27.2 × 48 in
Warranty5-yr base frame; 13-mo controller, motors, electronics

Shipping & delivery

Ships in 1–5 business days

  • Free shipping on orders over $50
  • Curbside delivery by freight carrier. The carrier brings it to your curb or driveway; moving it inside is up to you.
  • The carrier may contact you to schedule a delivery window.
  • Signature required at delivery.
  • Some assembly required.
  • Inspect before signing and note any damage on the delivery receipt. Report damage within 48 hours.
View return policy

Insurance & FSA / HSA

See if your plan covers it — in 60 seconds.

We bill Medicare and most major insurance plans. With a doctor’s order your out-of-pocket may be $0. Or pay directly with your FSA / HSA card at checkout.

Check coverage
Weight capacity 400 lb
Seat Captain or pan, 20 to 24 in W
Power seat elevation 10 in
Seat-to-floor height 24 to 34 in
Recline Up to 135°
Drive Mid-wheel
Seat depth 18 to 22 in, adjustable
Max speed 5 mph
Range Up to 20 mi
Turning radius 21 in
Ground clearance 2.2 in
Max grade 8°
Motors Two 24V 300W
Wheels 6 in solid front and rear, 12 in flat-free drive
Dimensions 35.4 × 27.2 × 48 in
Warranty 5-yr base frame; 13-mo controller, motors, electronics
